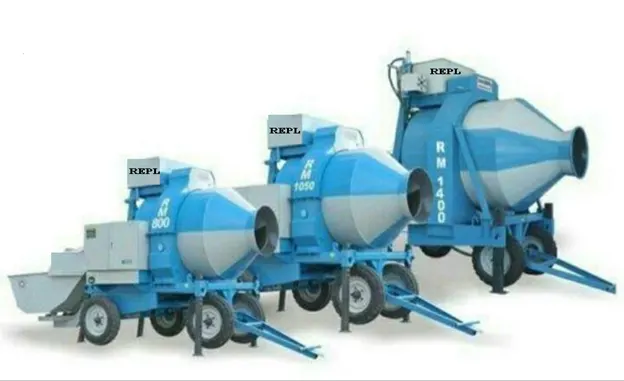

Mini Mobile Batching plant Machines –RM SERIES REVERSIBLE CONCRETE MIXERS

At Rhishikesh Engineers Pvt. Ltd., Mini Mobile Batching plant Machines –RM SERIES REVERSIBLE CONCRETE MIXERS.
REVERSIBLE CONCRETE MIXERS
Product Overview:

RM Series Mini Mobile Batching Plant – Reversible Concrete Mixers by Rishikesh Engineers Pvt Ltd, located at MIDC Ambad, Nashik

Key Features:
🚚 Design & Mobility:
Mounted on a robust trailer chassis with 4 pneumatic tyres, including a tow bar for easy repositioning on-site.
Ideal for small to medium-sized projects, remote sites, and fast-track jobs.
🔁 Reversible Drum Mechanism
Forward drum rotation for mixing, reverse for discharging—enabling single-batch production with minimal labor. Materials enter via a loading chute and exit through a discharge chute on opposite ends
Drum speed: approximately 20 RPM (as per RM 800 spec) . Digital load-cell weighing bins ensure precise measurement of cement, sand, and aggregates
Microprocessor-based PLC control manages batching sequence, with options for auto water dosing, admixture dosing, and even batch printouts
💧 Hydraulics & Auxiliary Systems
Equipped with a hydraulic pump (e.g., RM 800 uses 26 lpm @ 200 bar)
Includes a 240 L water tank for water dosing
🛠️ Build Quality & Maintenance
Drum and gears made from heavy-duty MS plates, supported by gearbox, gear racks, and twin roller guidance for durability .
Minimal maintenance, with rugged design suited for harsh site conditions.
🛍️ Options & Upgrades
Additional bins (up to 3 or 4) for more material types.
Printout module for batch record keeping.
Admixture dosing systems.
Cement screw conveyors and load-out conveyors.
SCADA integration for advanced automation

RM 800
Mini Mobile Batching Machine
Technical Features
SPECIFICATION RM 800E
Hopper Capacity 800 Litres3
Batch Capacity 600 Litre-2 BAG output
Machine Output/Hour* 12-12 M3
Main Motor Drum 10 HP
Water Pump 1 HP
Vibrating Motor 0.1 HP
Water Dozing Digital
Water Tank Capacity 170 Litres
Weighing System Load Cell Based Weighing System With Digital Display
Hydraulic Pump 19 lpm@200 bar
Gear Ring & Roller Accurate Machined With Gear Cutting Operation Supported by Heavy Duty Rolloer Guide.
Wheels Pneumatic Wheels (4 Nos.) 6×16
Jack Leveling Pin Type (4 Nos.)
Special Attachment Fitted With Each Machine A) Special Design if Hopper Vibrator
B) Centralised Lubrication System
RM 1050
Mini Mobile Batching Machine
Technical Features
SPECIFICATION RM 1050
Hopper Capacity 1000 Litres3
Batch Capacity 750 Litre-3 BAG output
Machine Output/Hour* 12-15 M3
Main Motor Drum 15 HP
Water Pump 1 HP
Vibrating Motor 0.1 HP
Water Dozing Digital
Water Tank Capacity 250 Litres
Weighing System Load Cell Based Weighing System With Digital Display
Hydraulic Pump 22 lpm@200 bar
Gear Ring & Roller Accurate Machined With Gear Cutting Operation Supported by Heavy Duty Rolloer Guide.
Wheels Pneumatic Wheels (4 Nos.) 6×16
Jack Leveling Pin Type (4 Nos.)
Special Attachment Fitted With Each Machine A) Special Design if Hopper Vibrator B) Centralised Lubrication System.
RM 1400
Mini Mobile Batching Machine
Technical Features
-
SPECIFICATION RM 1400
Hopper Capacity 1350 Litres3
Batch Capacity 900 Litres3
Machine Output/Hour* 18-20 M3
Main Motor Drum 20 HP
Water Pump 1 HP
Vibrating Motor 0.1 HP
Water Dozing Digital
Water Tank Capacity 250 Litres
Weighing System Load Cell Based Weighing System With Digital Display
Hydraulic Pump 24 lpm@200 bar
Gear Ring & Roller Accurate Machined With Gear Cutting Operation Supported by Heavy Duty Rolloer Guide.
Wheels 7×19
Jack Leveling Pin Type (4 Nos.)
Special Attachment Fitted With Each Machine A) Special Design if Hopper Vibrator B) Centralised Lubrication System
FAQ – Mini Mobile Batching Plant Machines (RM SERIES) – Reversible Concrete Mixers Rishikesh Engineering, Nashik
1. What is the RM SERIES Mini Mobile Batching Plant? The RM SERIES by Rishikesh Engineering is a range of reversible drum concrete mixers designed for mobile and compact batching operations. These plants offer efficient mixing, easy mobility, and are ideal for small to medium construction projects.
2. What are the key features of the RM SERIES Reversible Concrete Mixers? Reversible drum mixing technology for uniform mixing
Compact and mobile design for easy transport
Automated water and additive dosing systems
Digital load cell-based weighing for precise batching
Low maintenance and user-friendly operation
Options for both diesel engine and electric motor drive
3. What are the available models in the RM SERIES? Typical models include:
RM 800 – Output capacity: 8–10 m³/hr
RM 1050 – Output capacity: 12–15 m³/hr
RM 1400 – Output capacity: 18–20 m³/hr
Note: Availability of specific models may vary. Contact Rishikesh Engineering for up-to-date options.
4. How does the reversible drum mixer work? The drum rotates in one direction for mixing and in the reverse direction for discharging concrete. This mechanism improves efficiency and reduces material wastage.
5. What type of projects is the RM SERIES suitable for? These machines are ideal for:
Residential and commercial construction
Road and bridge projects
Small-scale RMC (Ready-Mix Concrete) supply
Precast concrete production
6. What materials can be mixed in the RM SERIES mixers? These mixers can handle a wide range of materials including:
Cement
Sand
Aggregate
Water
Admixtures (optional)
7. Is the machine easy to transport and install? Yes, the RM SERIES is designed for ease of mobility and quick setup at site. The chassis is fitted with wheels and towing arrangements for hassle-free transport.
8. What power options are available? Depending on the model, the RM SERIES mixers can be powered by:
Diesel Engine – for remote or off-grid locations
Electric Motor – for sites with a reliable power supply
9. Does the RM SERIES come with a control panel? Yes, a fully automatic control panel is provided with most models, featuring:
Load cell indicators
Auto water and admixture dosing
Preset mix design settings
Emergency stop system
10. What is the warranty and after-sales support provided? Rishikesh Engineering offers:
Standard manufacturer’s warranty (usually 12 months)
Nationwide after-sales service network
Availability of spare parts
On-site training and commissioning support
11. Can the machine be customized? Yes, Rishikesh Engineering offers customization options such as:
Higher capacity bins
Additional admixture tanks
Skid-mounted options
PLC-based control panels
